TWO STEEL WIRE -PAINT HOSE

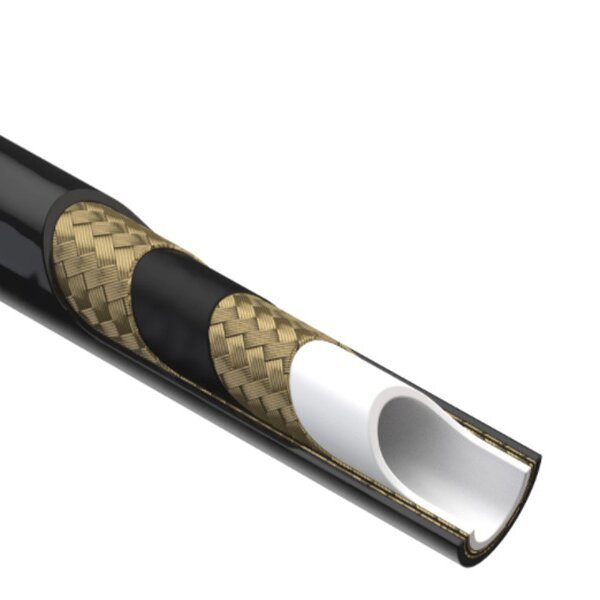

INNER TUBE：Polyester elastomer

REINFORCEMENT：Two braids of steel wire

COVER：Polyurethane-black-non pin pricked

APPLICATIONS：General hydraulic applications requiring high mechanical protection properties of hose and braid combined with high pressure – construction equipment -hoisting and handling equipment – machine tools

FEATURES：Rugged construction for HD application and prolonged lifetime – Two steel braid offers low volumetric expansion and optimum change in length characteristics-Abrasion resistant

Temperature Range：-40 °C to 100 °C (-40 °F to 212 °F): limited to 70 °C ( 158 °F) for air and water based fluids

Specifications：Meets the pressure performance requirements of SAE 100R2.

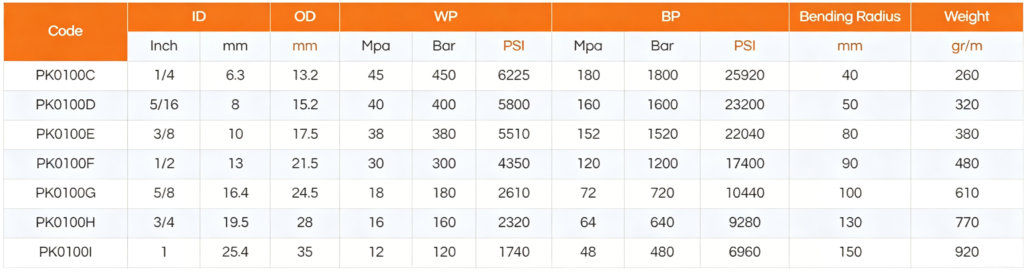

Technical details
