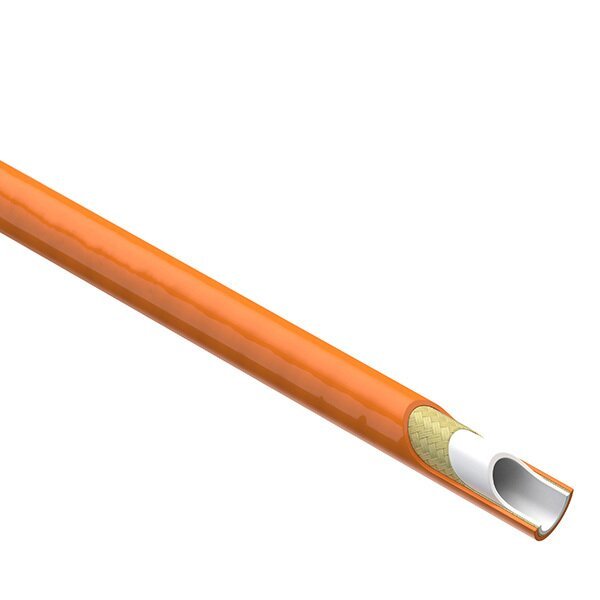

INNER TUBE：Polyester elastomer
REINFORCEMENT：One braid of aramid fiber
COVER：Polyurethane -orange -laser branding

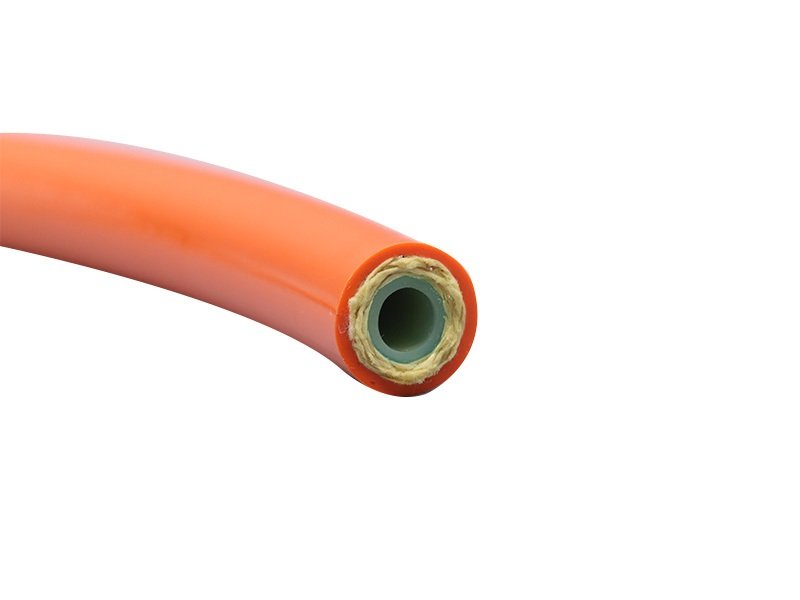

Thermoplastic non-conductive hose for high pressure hydraulic applications
INNER TUBE：Polyester elastomer
REINFORCEMENT：One braid of aramid fiber
COVER：Polyurethane -orange -laser branding
APPLICATIONS：High voltage equipment -Safety and rescue equipment -Aerial platforms.Cranes -Equipment requiring electrical high insulation
FEATURES：Aramid reinforcement for high pressure performance -Lightweight .Flexible -Compact – Bonded construction -Orange cover – Non pin-pricked-Abrasion resistant
Temperature Range：-40 °C to 100 °C (-40 °F to 212 °F): limited to 70 °C ( 158 °F) for water based fluids
Specifications：SAE 100R8 / EN855-R8 / ISO3949-R8
Hoses meet standards SAE J517/J343 and EN855 for non conductivity where maximum electrical leakage shall not exceed 50μA when a 152 mm sample is subject to 37.5 KV for 5 minutes equivalent to 250 KV/meter.

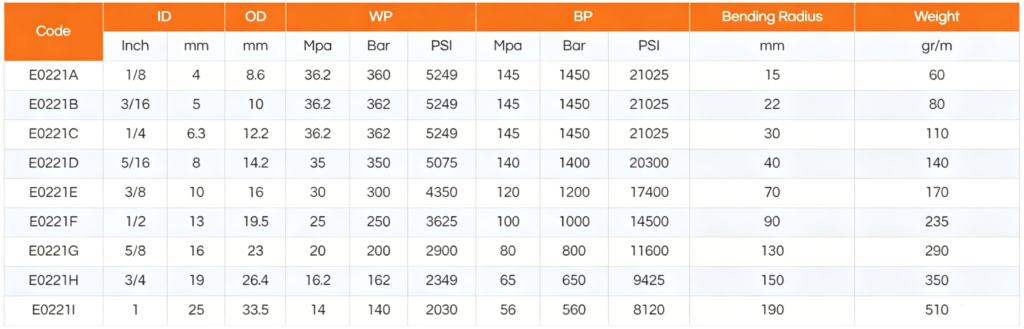

Technical details
