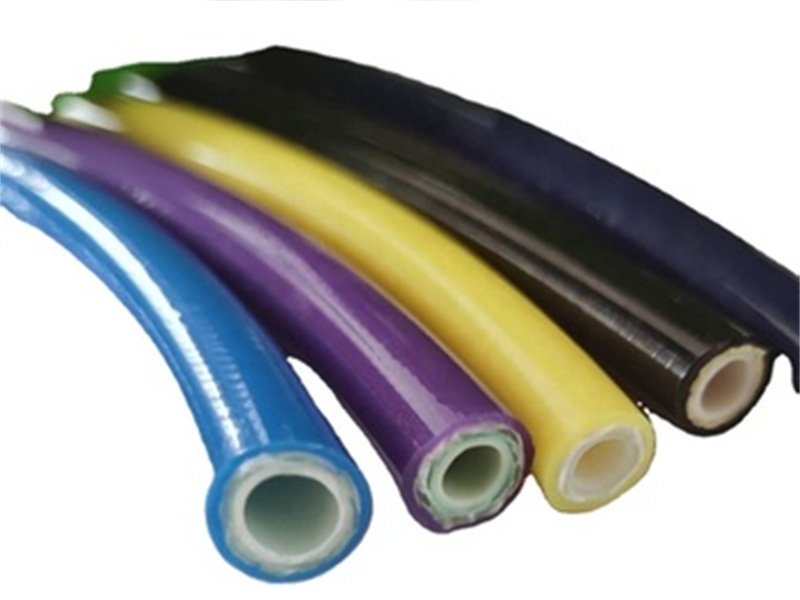

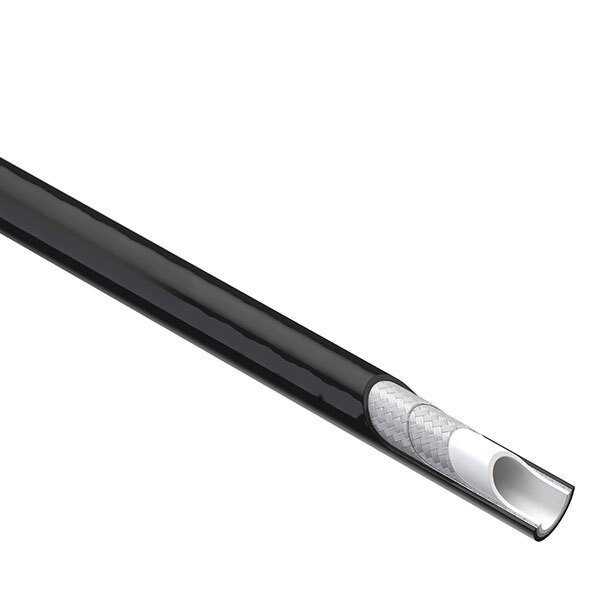

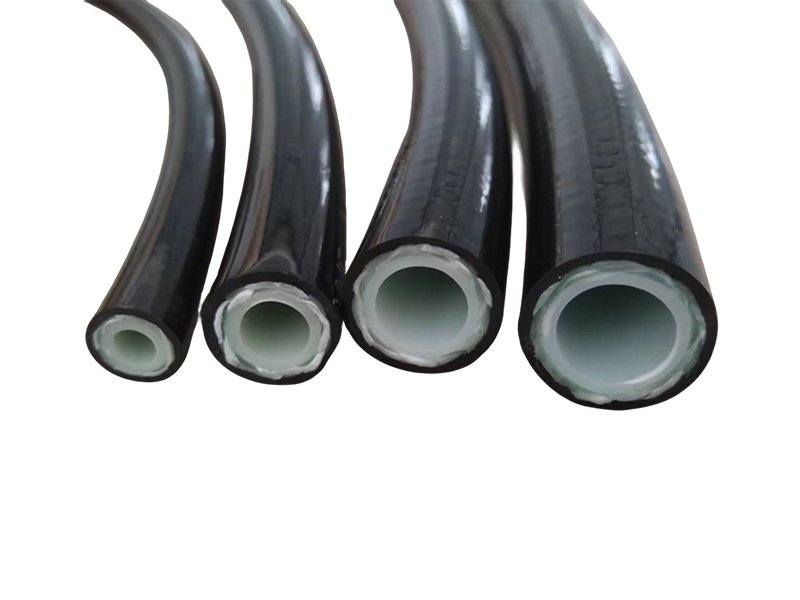

R7 HOSE

INNER TUBE

Thermoplastic elastomer

REINFORCEMENT

1&2 layer of braided high-resistance synthetic fiber

COVER

Pin pricked anti-abrasion polyurethane

APPLICATIONS

SAE R100 R7 hose is ideal for medium pressure hydraulic systems.Construction and agricultural equipment,Agricultural brake systems,Forklift Trucks,Articulating and telescopic booms,Aerial platforms,Scissor lifts,Cranes,General hydraulics,Industrial gases.

TEMPERATURE RANGE

-40 ‘C to 100 ‘C (-40 °F to 212 °F): limited to 70 ‘C (158 °F) for air and water based fluids

SPECIFICATIONS

SAE100R7/ EN855-R7 /IS03949-R7

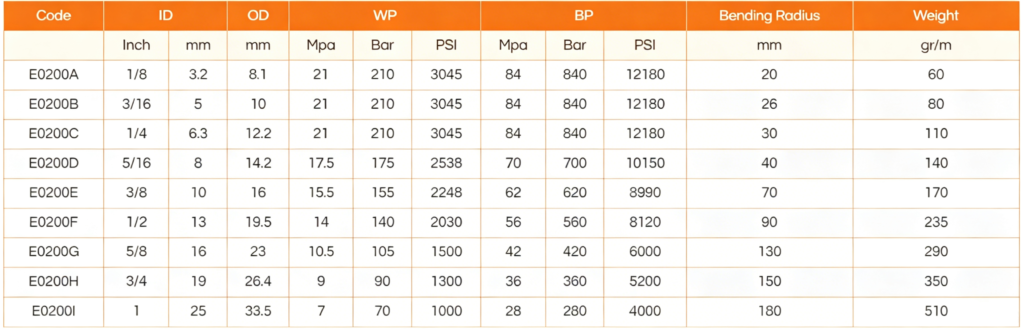

Technical details
