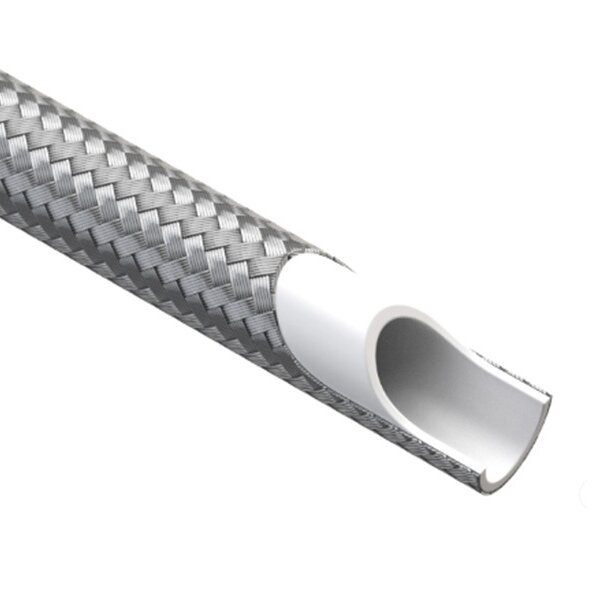

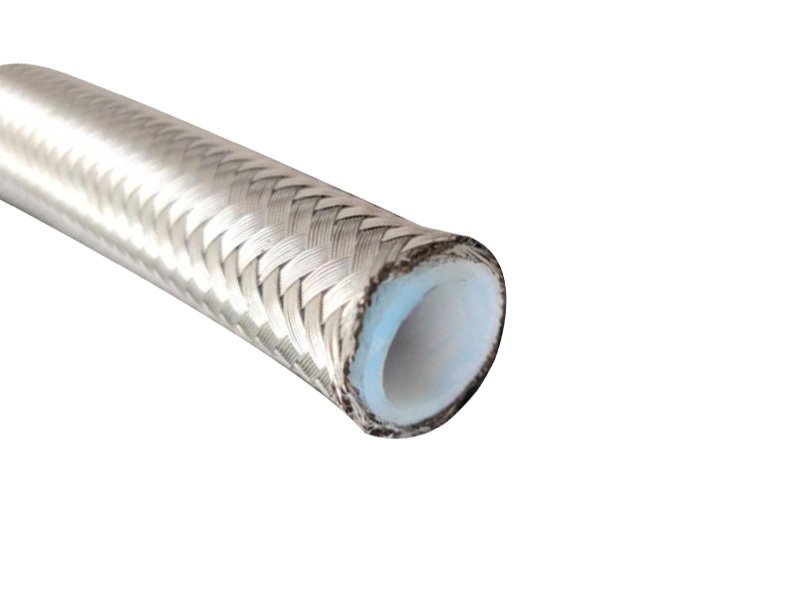

INNER TUBE：Polytetrafluoroethylene
REINFORCEMENT：One braid of stainless SUS 304 wire
APPLICATIONS：Aggressive chemicals transfer systems – Compressed air and gases – High or low temperature fluid or gas transfer
INNER TUBE：Polytetrafluoroethylene
REINFORCEMENT：One braid of stainless SUS 304 wire
APPLICATIONS：Aggressive chemicals transfer systems – Compressed air and gases – High or low temperature fluid or gas transfer
FEATURES：Pure PTFE tube material: lightweight resistant to almost all chemicals gases and solvents. Stainless steel braid/cover to support medium pressure requirements. Hose comes in random length coils
Description：Lightweight smooth bore hose for standard industrial use especially for high or low temperature and aggressive chemical applications: including some gases (there will be a level of gas permeation which should be taken into account). Hose not suitable for continuous hydraulic impulse applications. Above 130 °C ( 266 °F) there will be a reduction in maximum working pressure: reduce maximum working pressure by 1% for each 2 °C (3.6 °F) above 130 °C ( 266 °F).

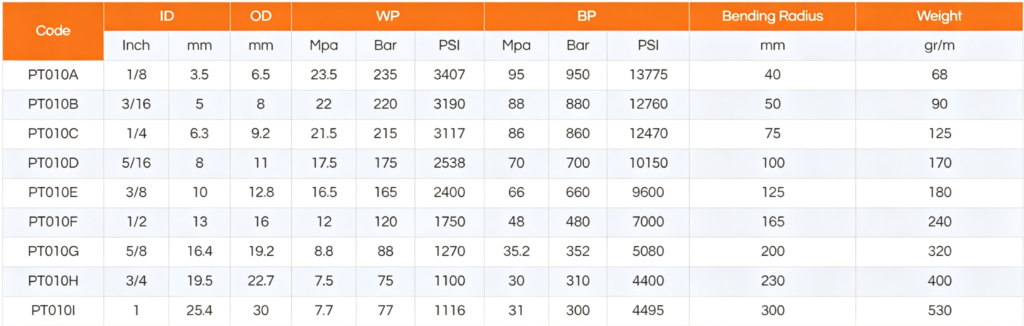

Technical details
