Multi-Core Drag Chain Cable | High Flex Multi-Conductor Dynamic Cable

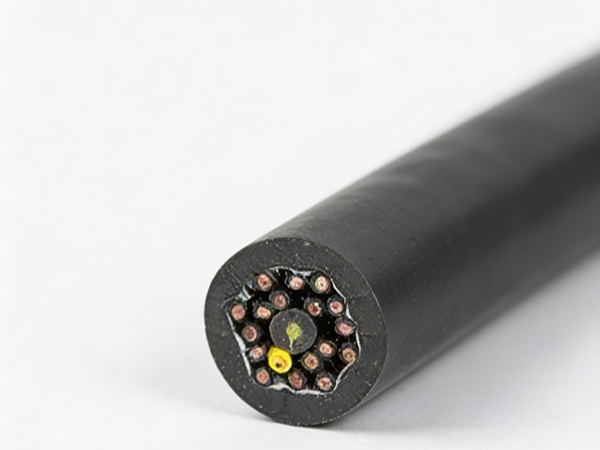

Multi-Core Drag Chain Cables are multi-conductor integrated dynamic wiring solutions tailored exclusively for high-frequency reciprocating drag chain automation systems. Different from single-core drag chain wires that can only undertake single-circuit transmission tasks, this multi-core integrated cable integrates multiple independent power and control cores inside a single compact sheath. It is professionally optimized for continuous stretching, repeated bending and cyclic displacement of drag chain equipment, solving the problems of messy wiring, poor overall stability and easy core damage caused by laying multiple single-core cables separately in automated production equipment.
This dynamic cable adopts Class 6 ultra-fine stranded flexible copper conductors, which can evenly disperse mechanical stress generated by high-speed cyclic movement. It effectively avoids metal fatigue, wire breakage and power/signal interruption after millions of drag chain cycles. Each internal conductor is equipped with independent high-flex insulating layers to achieve physical isolation between multiple circuits, preventing mutual crosstalk and signal interference between power and control circuits. The internal cores adopt a symmetrical compact stranding process, which enhances the overall cohesion of the cable, prevents internal core friction, displacement and loose structure during long-term reciprocating operation.
The outer protective sheath is made of high-toughness industrial flexible polymer material, with excellent wear resistance, extrusion resistance, oil resistance and low-temperature bending stability. It can withstand long-term mechanical friction, equipment extrusion and industrial oil contamination in narrow drag chain grooves. The streamlined integrated structure effectively avoids cable kinking, winding and deformation, greatly reducing equipment failure rates caused by cable damage. With diverse core quantity and cross-section specifications, this multi-core drag chain cable can meet the multi-circuit synchronous transmission needs of various precision automated machinery, realizing simplified wiring, neat installation and low-maintenance operation of drag chain systems.
Core Product Features
-
Multi-core integrated design, integrates multiple power and control circuits in one cable to simplify wiring layout
-
Independent single-core insulation structure effectively eliminates circuit crosstalk and signal interference
-
Ultra-fine flexible conductor adapts to millions of high-frequency drag chain bending cycles without fatigue damage
-
Symmetrical stranding technology enhances overall structural stability, preventing internal core displacement and friction
-
Heavy-duty outer sheath features wear resistance, oil resistance and extrusion resistance for harsh workshop environments
-
Compact and flexible body avoids kinking and tangling, suitable for narrow drag chain installation space
Wide Application Scenarios
-
High-speed reciprocating drag chain systems for automated production lines
-
CNC machine tools and precision numerical control processing equipment
-
Automated logistics conveying and sorting machinery
-
Industrial robotic auxiliary mobile wiring and transmission equipment
-
All automated mechanical equipment requiring multi-circuit synchronous dynamic transmission
